Security Explosive Trace Detector (ETD) Explosive Detection System (EDS)

Basic Info

Model NO.	HD600
Alarm Form	Display Alarm
Size	380 mm(W)×400 mm(L)×180 mm(H)
Net Weight	<15kg
Explosives Identify	a Variety of Civilian, and Homemade Ex
Transport Package	Wooden Packing
Specification	CE, ROHS, FCC
Trademark	Safeway system
Origin	China
HS Code	9031809090
Production Capacity	500 Sets / Month

Product Description

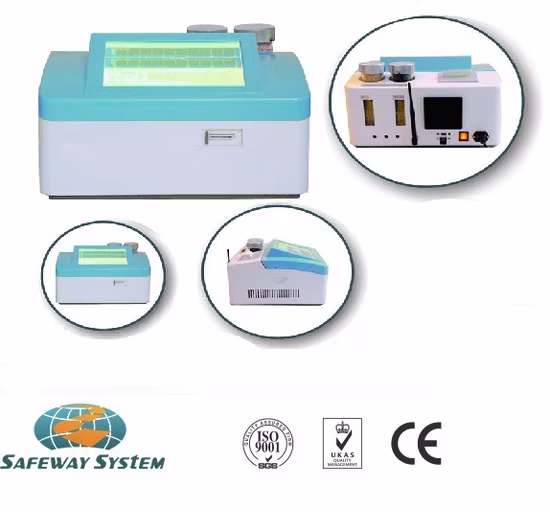

Explosive Trace Detector/Etd Equipment model--HD600 ETD
Technic datas of explosive trace detector :

Source	Vacuum Ultra Violet ionization source.
Explosives identify
Narcotics identify (Optional function)
Sampling	dipstick tracking trace particles
Databases	open to user, can add new type explosive
Alarm	Sound / light
Sensitivity	Mix: Nanogram explosives, even pictogram sulfur
Identify speed	< 8 seconds
Warm-up time	< 20 minutes
False alarm rate	≤ 1%
Display	10 inch TFT color touch screen
Consumption	< 300W
Power	AC220V 50Hz
Operating temperature	-10°C ~ 55°C
Size	380 mm(W)×400 mm(L)×180 mm(H)
Net weight	<15KG

----------------------------------------------------------------------------------------------------------------------------------------------

Highlight Advantages of explosive trace detector :
1.High sensitivity: Can detect at least 100 Nanogram black powder, including fireworks and civil homemade explosives
2. High speed Indentify
3. VUV lamp soft ionization technique , non-radioactive
4. Advanced migration tube design ensures high resolution;
5. Automatic cleaning system can prevent inject pollution.
6. Renewable gas purification system
7. Database open to user, can add new type explosive
8.10 inch TFT color touch screen
9. Built-in printer to print test result at any time.
10.Dipstick can be reused
11. Support network control and transfer
12.Unlimited Storage, USB port to output data

-----------------------------------------------------------------------------------------------------------------------------------------------

Application:
Airport, Train Station, Coach Station, etc.
Defence Security
Public Safety

-----------------------------------------------------------------------------------------------------------------------------------------------
